China Custom Made Aluminum Roller Shutter Door with Max Width 7200 mm and Max Height 7000 mm for Enhanced Security wholesale

Custom Made Aluminum Roller Shutter Door with Max Width 7200 mm and Max Height 7000 mm for Enhanced Security

Ask Latest Price

Video Channel

Certification :ISO9001, CE

MOQ :10

Price :40

Model NO. :HA80+HA80-2

Material :Aluminum Alloy

Max Width :7200 mm

Max Height :7000 mm

Thickness :From 0.8mm to 1.2 mm

Specification :80mm

Slat Width :80 mm

Slat Thickness :1.2mm / 1.0 mm / 0.8 mm

Guide Rail Size :95*39mm

Guide Rail Thickness :2.5 mm

Shaft Diameter :5 inches, 6 inches, 8 inches, 10 inches

Shaft Wall Thickness :1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm

Noise Level :GB/TI6730,Rw=20dB

Bottom Rail Length :7.2 meters

Guide Rail Length :7.2 meters

Contact Now

Add to Cart

View Product Description

Aluminum Security Rolling Shutter Door | Aluminum Roller Shutter Door | Model HA80-1+HA80-3

PRODUCT DESCRIPTION

High-security Solid aluminum+ punched aluminum rolling shutter doors are popular for residential garage,commercial retail shopfronts, where they offer enhanced security without detracting from the look of the front.

You could benefit from the punched rolling shutter door, because it not only bring you security, as well as airflow,ventilation. We undersatnd it clearly that airflow,ventilation are extremely important for some areas such as shops, retail stores, showroom, garage and more.

APPLICATIONS:

Every aluminum roller shutter door is built to your required sizes and dimensions,this type of door is designed and widely used for industrial, commercial, residential applications as following:
♦ Front door of a villa
♦  Reception counters
♦ commercial shop fronts
♦ garage door
♦  warehouse
♦ and more

KEY FEATURES:

♦ Rust-proof. Aluminum roller shutter door is made of aluminum, which makes the door never rust, while normal galvanized steel roller shutter door is easy to get rusty.
♦ Noiseless. In between two aluminum slats, we put special long service life rubber for noise reduction. The rubber could also make the door runs more smoothly. The noise level is around GB/TI6730,Rw=20dB.
♦ Lightweight. Compared to galvanized steel rolling shutter, it's lightweight, so it's easy for transportation as well as installation.
♦ Ventilation available. The aluminum slats are punched to offer ventilation.
♦ Many color available. The natural color, white, blue, green, cream, or any other RAL color by powder coating
♦ Easy to install

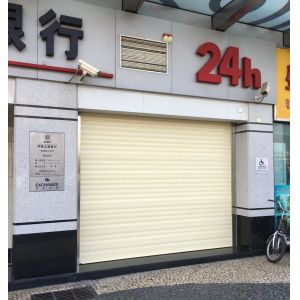

Project photos:

PRODUCT DRAWING

TECHNICAL SPECIFICATIONS

Item number	Max width	Max height	Color	Operation way	Options
HA80+HA80-2	7,200 mm	7,000 mm	any RAL color by powder coating	manual operation, motorized operation	shutter box, safety sensor, UPS, safety brake, video surveillance

Curtain:
♦Material: double skinned solid aluminum slats + single skinned aluminum extruded slat, with punched holes / perforated holes
♦Size: 80 mm width (pitch heihgt)
♦Thickness: 1.2mm / 1.0 mm / 0.8 mm
♦Color: standard color is white and cream. Any RAL color is available by powder coating at additional cost

Double skinned aluminum extruded slat

Punched type single skinned aluminum extruded slat, could be inserted with polycarbonate panels if needed

Micro-perforated type single skinned aluminum extruded slat


Bottom rail:
♦Material: aluminum
♦With rubber weather seal
♦Max length: 7.2 meters

Guide rail:
♦Size: 95*39mm,Width*Depth
♦Thickness: 2.5 mm
♦With brush strip
♦Max length: 7.2 meters

Shaft / Axle:
♦Material: galvanized steel
♦Diameter:5 inches(side motor), 6 inches, 8 inches, 10 inches
♦Wall thickness: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm

Operation way:
♦Manual operation by hand or hook (push up & push down)
♦Automatic operation with motor(remote controls, switch button)

Optional:
♦Shutter box / hood cover
♦Perforated slats, punched slats are available if needed
♦Wicket door

Call / E-mail us NOW to get a free quote !!!

Certification

FAQ

What is the delivery time?

A: 20 days for the standard colors and 30 days for the customized. Also it depends on the specifications and quantity each order. Shipment time depends on the location of our customers.

What is your payment items?

A: Normally we accept 30% for deposit by T/T and the balance would be arranged before delivery. If you have any other suggestion, please contact with us.

Can we place one or two sets for trial?

A: Yes of course, this is the better way of quality check. Also if you don't required one whole set, we have small sample in stock as well, it is free of charge, you just need to handle with the freight. It is a good way to show the sincerity for both of us.

How can I know the price exactly?

A: The price is based on your specific requirements, it is better to provide as much as possible information such as color, size, quantity, market location, sales patterns, all of these would be of help us to quote the exact price.

Can I order components instead of the full set of door?

A: Yes, as a factory we welcome business clients purchasing components of the door, such as panels, hardware's, motors, etc., to maximize the advantage of our mutual parties.
